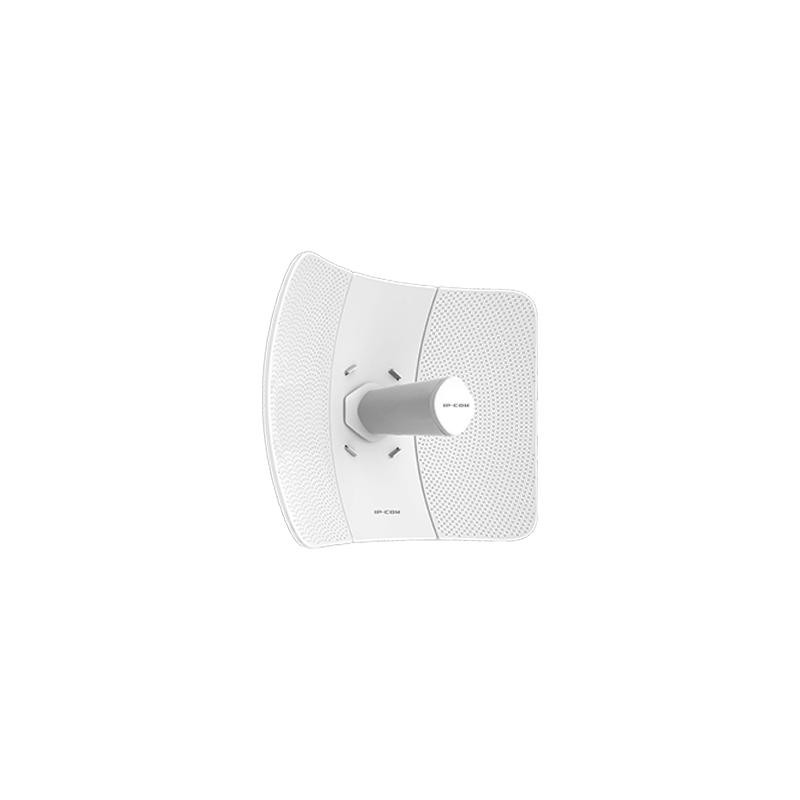

Antenna direzionale CPE 23dBi freq. 5GHz 25km iLitebeam5AC
  • Antenna direzionale CPE 23dBi freq. 5GHz 25km iLitebeam5AC

Antenna direzionale CPE 23dBi freq. 5GHz 25km iLitebeam5AC

56,16 €
Tasse incluse
Sizes: 39,15x28x22,3cm
Box: 1
Color: White
Certificate: CE RoHS FCC
Comp. brand: IP-COM
Quantità

Documenti scaricabili:
- Scheda tecnica
- Manuale installazione



iLitebeam-5AC
5GHz 23dBi ipMax AC Gigabit Outdoor CPE

  • 5GHz 11AC 867Mbps
  • Antenna direzionale 23dbi
  • Porta Gigabit Ethernet
  • Impermeabile
  • Protezione contro i fulmini fino a 6000V
  • AP,Station,WISP operating mode supportati



Informazioni Prodotto

Modello iLBM-5AC
Dimensioni 391.5*280*223mm
Installazione su palo
Utilizzi  PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Caratteristiche Hardware
Range di Frequenza 5GHz
Standards IEEE 802.11a/n/ac
Private TDMA Protocol ipMAX
Massima velocità wireless 867Mbps
Interfacce 1*10/100/1000Mbps Ethernet Port
Antennas Gain 23dBi
Fascio delle antenne Orizzontale: 10° Verticale: 10°
Reset Button 1
Consumo energetico 7.5W
Grado di impermeabilità IP65
Indicatori LED PoE/LAN,LED1,LED2,LED3
Alimentazione 24V0.5A Passive PoE
Lightning Protection 6000V
Passive PoE Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins )
Voltage range: 21-25V DC
Sensibilità di ricezione 11a 6Mbps -96dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -65dBm±1.5dBm
Caratteristiche Software
Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio Support
SSID Hidden Support
Wireless Client isolation Support
SSID Isolation Support
Channel Bandwidth 20/40/80MHz
Client Limitation For SSID Support
Wireless Access Control Support
Weak Signal Client Limitation Support
Transmission Power Adjustable power by 1dBm
WMM Capable Support
APSD Capable Support
Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge Support
VLAN Tagging for SSID Support
DHCP Server Support
VPN Pass-Through PPTP,L2TP
Remote Web access Support
Schedule Reboot Support
Page Timeout Support
Ping Watchdog Support
Dyndns noip, dyndns.org
Network Diagnoses Ping, Traceroute, Signal Scan
Time&Date Setting Support
Firmware upgrade Support
Backup/Restore Configuration Support
Username Managerment Support
System Log Support
Managed By Controller PC Software -- CPE Controller
Altre informazioni
Contenuto della confezione 1*5GHz 23dBi ipMax AC Gigabit Outdoor CPE iLBE-5ACV1.0
1*PoE Power Adapter
1*Quick Installation Guide
Temperatura Funzionamento -30℃ ~ 60℃
Temperatura Conservazione -40℃ ~ 70℃
Umidità Funzionamento 10%~90% non-condensing
Umidità Conservazione 10%~90% non-condensing
Default login IP 192.168.2.1
Default Login Username admin
Default Login Password admin
Certificazioni FCC/CE/RoHS
IC-ILITEBEAM5AC
