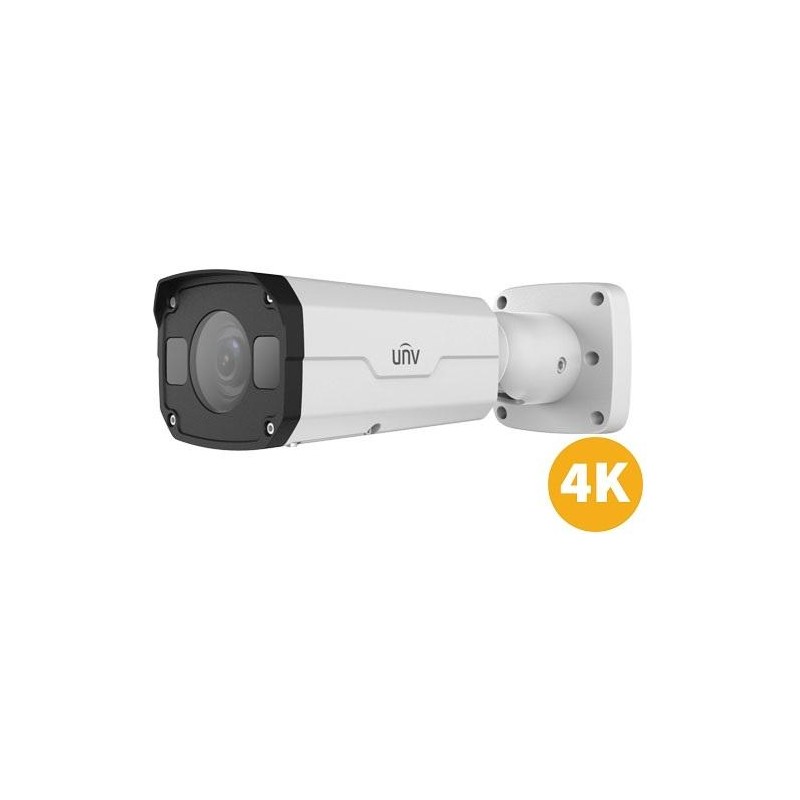

4K Uniview Bullet IPCamera Motorizzata, Ultra265, IP67
search
  • 4K Uniview Bullet IPCamera Motorizzata, Ultra265, IP67

4K Uniview Bullet IPCamera Motorizzata, Ultra265, IP67

209,05 €
Tasse incluse
Sizes: 1
Box: 20
Color: White
Certificate: CE Rohs
Comp. brand: Propart
Quantità
Non disponibile

4K Uniview Bullet IPCamera, Ottica Varifocal Motorizzata (2.8-12mm), 60metri IR, WDR

IPC2328SBR5-DPZ





IPC2328SBR5-DPZ
Camera
Sensor 1/2", 8.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
12 270 108 54 27
Angle of View (H) 114.8° ~ 47.3°
Angle of View (V) 75.3° ~ 20.4°
Angle of View (O) 141.2° ~ 55.8°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.5, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 50m (164ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps;
4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10W
Dimensions (L × W × H) 253.4 × 86.4 × 78.7mm (57.6” × 3.4” × 2.8”)
Weight 1.0kg (2.2lb)
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
IPC2328SR5-DUPZ
