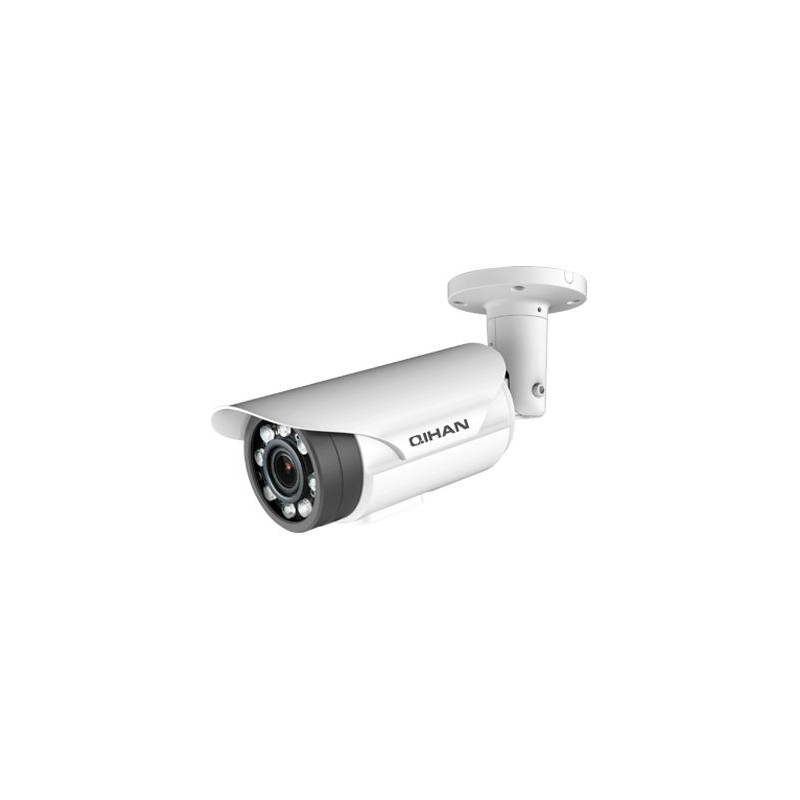

IP 1.3 Megapixel, PoE,Varifocale 2.8-12mm,42 LEDs
  • IP 1.3 Megapixel, PoE,Varifocale 2.8-12mm,42 LEDs

IP 1.3 Megapixel, PoE,Varifocale 2.8-12mm,42 LEDs

48,60 €
Tasse incluse
Sizes: 63*33*45
Box: 20
Color: White
Certificate: CE Rohs
Comp. brand: QIHAN
Quantità

Analogica

IP
NO

SI

PLASTICA

METALLO

NO

SI

NO

SI

NO

SI


APP MOBILE Compatibile con

 iPhone™ï¿½ï¿½iPad™, or Android™







Onvif=Compatibile

Lo standard Onvif significa che il prodotto rispetta un protocollo di compatibilità

Circa 30 famosi marchi di telecamere adottano standard ONVIF.



onvif







PoE=Convenienza

Il Power over Ethernet rende l'installazione della videosorveglianza più semplice, più sicura e meno costosa. La maggior parte delle nostre videocamere professionali supportano il PoE in modo da essere installate usando solo un cavo anziché 2

onvif





Model QH-NW351-P
Camera
Sensor/DSP 1/3" Progressive Scan CMOS
Day/Night ICR
Min. Illumination 0.01lux @F1.2,AGC on,0 lux  with IR on
Lens 2.8-12MM 2.0 Mega Pixel MF Fixed Iris
IR LED 42 LEDs
IR Distance 30~40m
Electronic Shutter 1/20~1/30000s
Video
Compression H.264/M-JPEG
Max.image Resolution 1280 x 960
Frame Rate 30fps(1280 x 960)
Bit Rate Main Stream: 1000~6000kps
Sub Stream: 512~2048kbps
Mobile Stream: 64~256kbps
Audio
Compression G.711
Talkback YES
Network
Protocol TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP, NTP
Compliance ONVIF V2.1(1.02 backward compatible)
CGI
PC Client and Browser ISS, IE6.0 and above, Google Chrome, Mozilla Firefox, Mac Safari
Mobile phone iPhone, iPad, Android
WIFI NA
WIFI Encryption NA
3G Network NA
Interface
Video Output 1Vp-p composite output (75Ω /BNC)
Audio Input 1 CH 3.5mm audio interface, MIC IN/LINE IN
Audio Output 1 CH 3.5mm audio interface
Alarm Input 1
Alarm Output 1
LAN 1 RJ45 10M / 100M ethernet port
RS-485 1
Storage Interface NA
PIR NA
General
Working Temperature -10��~ +55��
Working Humidity 0% - 90%
Protection Level IP67
Power Supply 12 VDC ± 10% , PoE(802.3af)
Power Consumption 5.1W  with IR ON
2.4W with IR OFF
Dimensions 63*33*45cm
Weight 1300g





QHNW351PN
