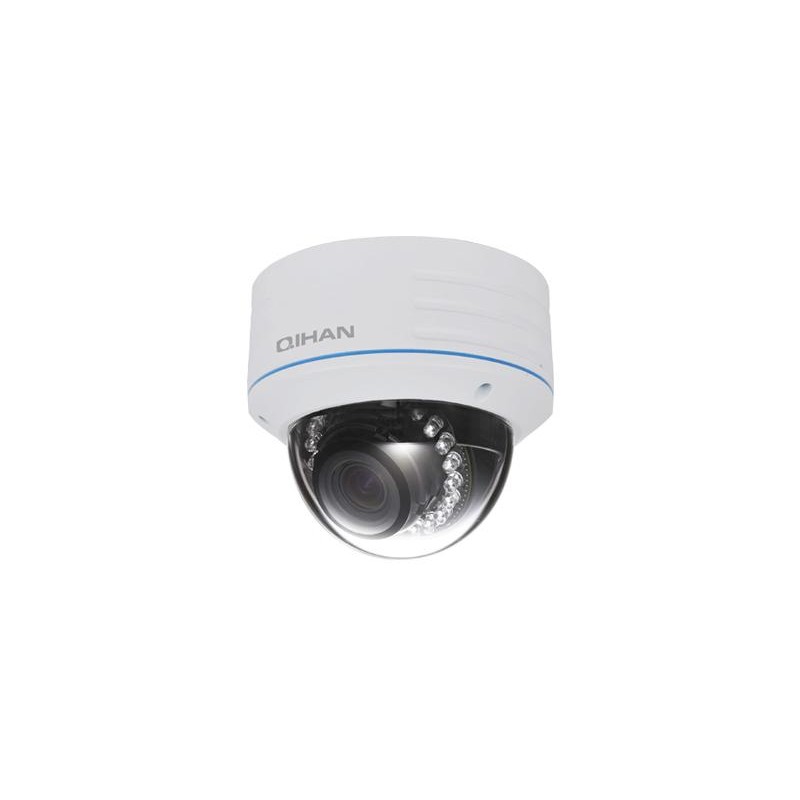

IP 1.3 Megapixel, PoE, Varifocale 2.8-12mm da interno
  • IP 1.3 Megapixel, PoE, Varifocale 2.8-12mm da interno

IP 1.3 Megapixel, PoE, Varifocale 2.8-12mm da interno

65,46 €
Tasse incluse
Sizes: ��139*128mm
Box: 5
Color: White
Certificate: CE Rohs
Comp. brand: QIHAN
Quantità

Analogica

IP
NO

SI

PLASTICA

METALLO

NO

SI

NO

SI

NO

SI

NO

SI


 2 ingressi allarmati (1 IN e 1 OUT)



APP MOBILE Compatibile con

 iPhone™ï¿½ï¿½iPad™, or Android™





POE



onvif





Model ROSI-QHNV336P
Camera
Sensor/DSP 1/3" Progressive Scan CMOS
Day/Night ICR
Min. Illumination 0.1lux @F1.2,AGC on,0 lux  with IR on
Lens 2.8~12MM 3.0 Mega Pixel MF Fixed Iris
IR LED 24 LEDs
IR Distance 20~30m
Electronic Shutter 1/20~1/30000s
Video
Compression H.264/M-JPEG
Max.image Resolution 1280 x 960
Frame Rate 30fps(1280 x 960)
Bit Rate Main Stream: 1000~6000kps
Sub Stream: 512~2048kbps
Mobile Stream: 64~256kbps
Audio
Compression G.711
Talkback YES
Network
Protocol TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP, NTP
Compliance ONVIF V2.1(1.02 backward compatible)
CGI
PC Client and Browser ISS, IE6.0 and above, Google Chrome, Mozilla Firefox, Mac Safari
Mobile phone iPhone, iPad, Android
WIFI NA
WIFI Encryption NA
3G Network NA
Interface
Video Output 1Vp-p composite output (75Ω /BNC)
Audio Input 1 CH 3.5mm audio interface, MIC IN/LINE IN
Audio Output 1 CH 3.5mm audio interface
Alarm Input 1
Alarm Output 1
LAN 1 RJ45 10M / 100M ethernet port
RS-485 /
Storage Interface NA
PIR NA
Reset Button
General
Working Temperature -10��~ +55��
Working Humidity 0% - 90%
Protection Level IP66/VandalProof
Power Supply 12 VDC ± 10% ��
PoE(802.3af)
Consumption 4.2W IR ON
2.7W IR OFF
Dimension Φ139*128mm
Weight 816g
QHNV336PN
