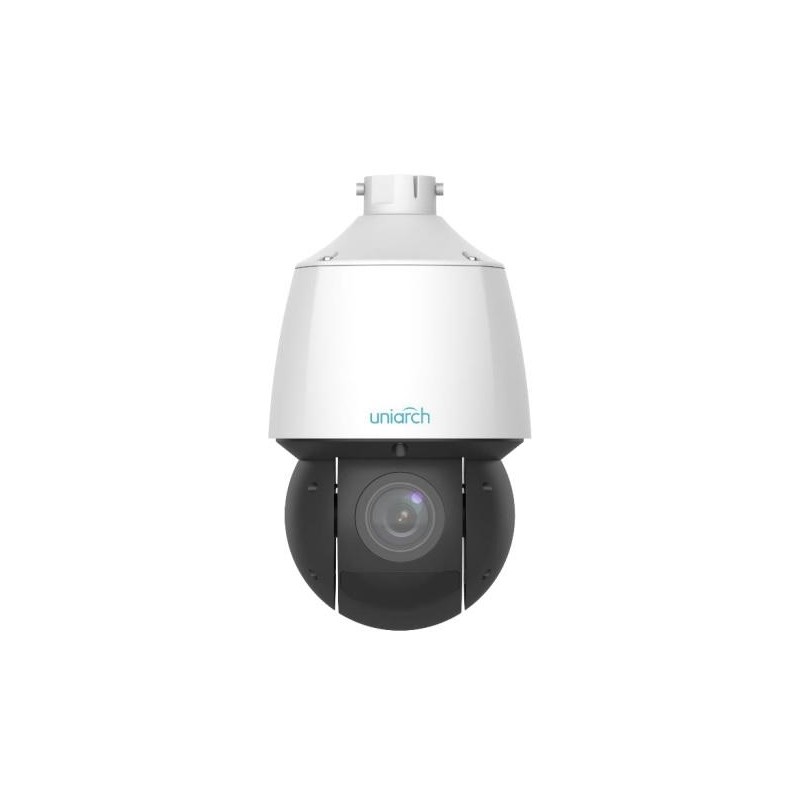

3MP IP Speed Dome, Zoom 20X , 0.02lux, IR 100 metri, POE

248,51 €
Tasse incluse
Sizes: 1
Box: 2
Color: White
Certificate: Ce Rohs
Comp. brand: Uniarch
Quantità

3MP SPEED DOME IPCamera, Ottica Motorizzata 360 gradi 20X  (Zooma fino a 150 Metri)

Ultra265/H.265/H.264/Mjpeg   Protezione IP67



IR 100 metri 0.003 Lux -  Slot per microSD: supporta fino a 256GB



DORI Distance Lente Detect (metri) Observe (metri) Recognize (metri) Identify (metri)
2.8 mm 63.0 25.2 12.6 6.3
12 mm 270.0 108.0 54.0 27.0



JUNCTION COMPATIBILI

TR-UP08-B-IN

TR-JB12-IN



TR-WE45-A-IN









Camera
Sensor 1/2.8", 3.0 megapixel, progressive scan, CMOS
Min. Illumination Colour: 0.003 Lux (F1.7, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >52dB
Lens
Lens type 5 ~ 100mm, AF automatic focusing and motorized zoom lens
Optical Zoom 20
Iris Fixed; F1.7 ~ F2.8
Angle of View (H) 51.70° ~ 3.85°
Angle of View (V) 30.49° ~ 2.16°
Angle of View (O) 63.60° ~ 4.54°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
5 77.6 (254.5ft) 31.0 (101.8ft) 15.5 (50.9ft) 7.8 (25.5ft)
100 1551.7 (5091.0ft) 620.7 (2036.4ft) 310.3 (1018.2ft) 155.2 (509.1ft)
Illuminator
IR Range Up to 100m (328 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression H.265, H.264, MJPEG
Frame Rate Main Stream: 3MP (2304*1296), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
ROI Support
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Tampering Alarm
Auto Tracking Support
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client Uniarch Client
Uniarch app
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 80°/s
Preset speed: 80°/s
Tilt Range –15° ~ 90° (auto reverse)
Tilt Speed 0.1°/s ~ 80°/s
Preset speed: 80°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time   15s ~ 1800s
Preset Image Freeze N/A
Home Position Support
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic N/A
Built-in Speaker N/A
Wi-Fi N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
General
Power DC12V (±25%), PoE+(IEEE 802.3at)
Power consumption: MAX 20W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Ø162 x 293mm (Ø6.4” x 11.5”)
Weight 1.79kg (3.95lb)
Working Environment -40℃ ~ 65℃ (-40°F ~ 149°F),Humidity: ≤95% RH (non-condensing)
Storage Environment -40℃ ~ 70℃ (-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Reset Button Support
Protection Ingression protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IPC-P413-X20K
